KWIK-CLAMP
Increase throughput and slash setup times
with the Kwik-Clamp from Raptor!
See it in action
Introducing Time-savings

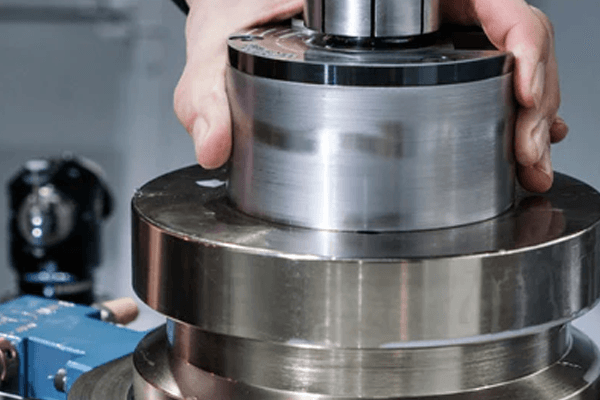

The Kwik-Clamp is quickly and easily installed on any 3-, 4-, or 5-axis machining center. With two dowel pins and a standard CAT 40 retention knob, the Kwik-Clamp uses compressed air to locate vises, fixtures, and other workholding devices in seconds, providing up to 3800 lbs. of holding force at .0002” repeatability. While one workpiece is in process, the operator loads raw material or semi-finished parts into a second Kwik-Clamp equipped vise or fixture—when the machining cycle ends, the two are swapped and production resumes. The result is decreased downtime and more finished parts per shift. Kwik-Clamp’s extreme accuracy also increases production flexibility, since jobs can be transferred between machine tools without unclamping. Similarly, defects and scrap are greatly reduced, as parts can removed for mid-program inspection, then quickly and accurately placed back into the machine for completion.
Kwik-Clamp 5-Axis
Increases your productivity while lowering costs
The Kwik-Clamp 5-Axis quick-change workholding system can be used on all five-axis CNC machining centers. Part of TE-CO’s Raptor Workholding products, it allows operators to pneumatically clamp any vise, chuck, fixture, or other type of workholding to the machine table with 2,000 lbs. of clamping force and 0.0002″ accuracy and repeatability. The Kwik-Clamp 5-Axis increases productivity and lowers costs by significantly shortening changeover times, allowing shops to maximize machining throughput.
In addition, this revolutionary system’s patent-pending design has a small footprint that minimizes obstruction and assures easy access to five sides of the workpiece in a single setup. This simplifies processing of intricate or oddly-shaped parts without sacrificing stability.
Kwik-Clamp 4-Axis
Increases your productivity while lowering costs
The Kwik-Clamp 4-Axis quick-change workholding system can be used on all CNC machining centers equipped with a rotary table. Part of TE-CO’s Raptor Workholding products, it allows operators to pneumatically clamp any vise, chuck, fixture, or other type of workholding to the rotary table with 4,000 lbs. of clamping force and 0.0002″ accuracy and repeatability. The Kwik-Clamp 4-Axis increases productivity and lowers costs by significantly shortening changeover times, allowing shops to maximize machining throughput.
In addition, this revolutionary system’s patent-pending design has a small footprint that minimizes obstruction and assures easy access to four sides of the workpiece in a single setup. This simplifies processing of intricate or oddly-shaped parts without sacrificing stability.
Kwik-Clamp 3-Axis
Increases your productivity while lowering costs
The Kwik-Clamp 3-Axis quick-change workholding system can be used on all three-axis vertical machining centers. Part of TE-CO’s Raptor Workholding products, it allows operators to pneumatically clamp any vise, chuck, fixture, or other type of workholding to the machine table with 2,000 lbs. of clamping force and 0.0002″ accuracy and repeatability. This revolutionary system increases productivity and lowers costs by significantly shortening changeover times, allowing shops to maximize machining throughput.
KWIK-CLAMP Accessories
| PART NUMBER | DESCRIPTION |
|---|---|
| RKC-100 | HASS CAT40 Retention Knob |
| RKC-101 | Dowel Pin .3125 DIA. – Standard |
| RKC-102 | Dowel Pin .3125 DIA. – Standard |
| RKC-201 | RAPTOR/PIRANHA to KWIK-CLAMP Adapter |
| RKC-202 | KWIK-CLAMP 5C Collet Adapter |
| RKC-203 | KWIK-CLAMP 6″ Chuck Adapter |
| PART NUMBER | DESCRIPTION |
|---|---|
| RKC-204 | KWIK-CLAMP 8″ Chuck Adapter |
| RKC-205 | KWIK-CLAMP Vise Adapter |
| RKC-206 | KWIK-CLAMP 1.25 x 4 x 5 Fixture Blank |
| RKC-207 | KWIK-CLAMP 1.25 x 3.5 x 4 Fixture Blank |
| RKC-208 | KWIK-CLAMP Toe Clamp |
