RWP-262 Riser

RWP-262

Aluminum Medium Universal Riser

$989.30

Add to quote
SKU: RWP-262 Categories: ,
Weight 15.5000 oz
Dimensions 10.0000 × 10.0000 × 5.0000 in
Brand

Raptor Workholding
Diameter in.

8.980
Fixture Material

Aluminum
Height in.

3.500
Machine Type

DMG Mori DMU50/50eco, Mori NMV3000 (Inch Pallet), Mori NMV3000 (Metric Pallet), Mori NMV5000

Description

  • Description
  • Key Dimensions
  • Technical Files
  • Related Products

RWP-262

Medium Universal Riser – 7075-T6511 Aluminum

Enables compatible fixtures to be mounted on the pallet of  the following machines: Mori Seiki NMV5000, DMU50/50eco, NMV3000 metric/english & multiple other machines.

Product Height: 3.500″

Product Diameter: 8.98″

Bolt Circle Diameter: 6.000″ to 7.030″ Slotted c’bores for M12 or 1/2″ SHCS

Boss/Hole: 1.000″ Diameter x 0.30″ Receiving hole

Available Plugs: RWP-810 (1.250 dia), RWP-811 (30mm dia.) & RWP-PLUG-208 (2.50 machinable dia)

Mounts: All fixtures with a Raptor Interface

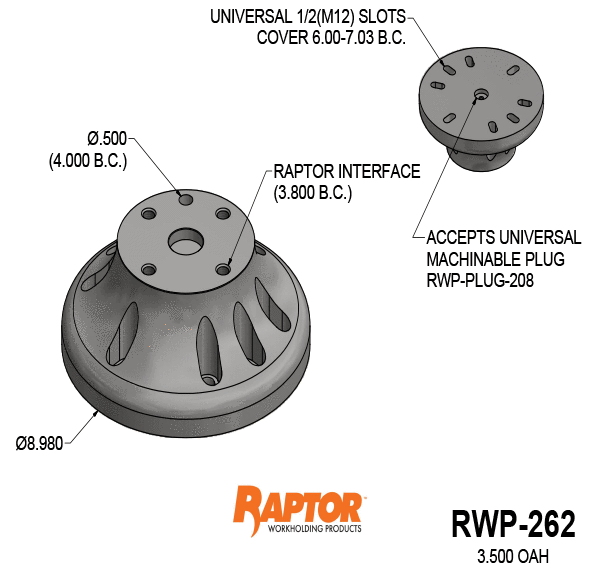

See Key Dimension Drawing for more details

Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy.
