RWP-952-01

RWP-952-01

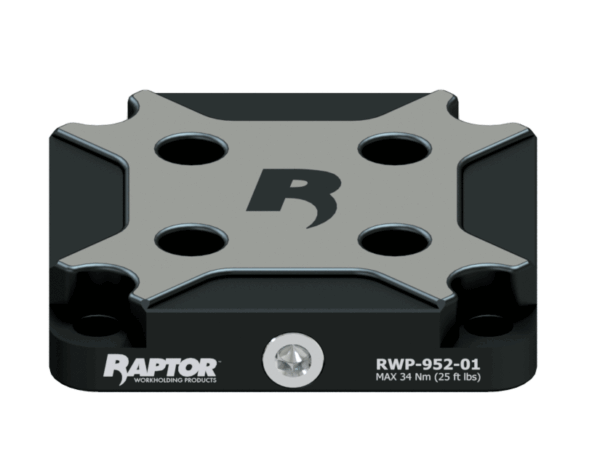

Zero-point clamping plate 125mm square x 26mm thick

52mm Zero-Point

52mm Zero-Point

Add to quote
SKU: RWP-952-01 Categories: , , Brand:
Dimensions (L x W x H mm.) 125 x 125 x 26
Weight 22.0000 oz
Dimensions 13.0000 × 13.0000 × 6.0000 in
Weight 5.6 lbs.
Zero-Point Plate Size 52mm

Description

  • Description

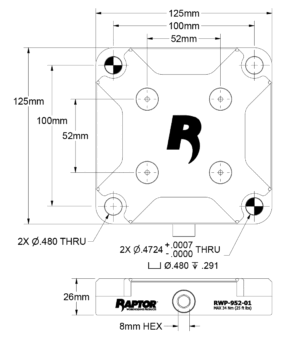

  • Key Dimensions
  • Technical Files
  • Related Products

RWP-952-01

Zero-point clamping plate

Mounting holes spreads on a 100 x 100mm spacing

  • Save time with repeatability up to 0.0005″
  • Industry standard 52mm pull stud spacing
  • 1,100 lbs clamping force per stud
  • Compatible with competitor fixtures
  • 4 coolant slots for internal drainage
  • Compensating design assures 4 point contact
  • Proudly manufactured in the United States
  • Built from high-quality steel for durability
  • *RWP-952-SKIT Zero-Point Stud Mounting Kit Required

Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy.
