RWP-242-V100

Aluminum Riser Plate
for RWP-502 Vise
8.450″ Diameter, 1.75″ Height

$807.63

SKU: RWP-242-V100 Categories: ,
Weight 120.0000 oz
Diameter in.

8.450

Height in.

1.750

Machine Type

Any

Connects to

RWP-502

Description

  • Description
  • Key Dimensions
  • Technical Files
  • Related Products

The RWP-242-V100 is an aluminum riser plate, designed with the Raptor vise, RWP-502, interface.



The vise and riser plate connect together using (2) Loc-Down Screws and (2) dowel pins (one for locating/one for centering).

Depending upon your application needs, there are three mounting options:

  1. Mount the RWP-502 vise directly to RWP-242-V100 riser plate.*
  2. Stacked: mount the RWP-502, RWP-242-V100 riser plate with the RWP-222-V100 universal adapter – small dia.*
  3. Stacked: mount the RWP-502, RWP-242-V100 riser plate with the RWP-223-V100 universal adapter – lrg dia.*

* See additional images for product mounting illustrations.

The RWP-242-V100 is manufactured from 7075-T6511 aluminum.

Our adapters and risers allow you to attach Raptor Workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.

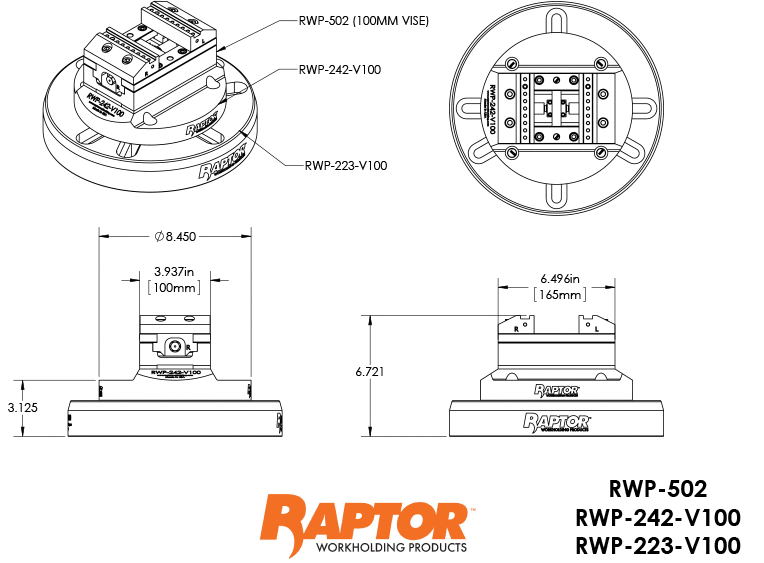

RWP-242-V100 Riser Plate Key Dimensions

Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy.
