RWP-203

Aluminum Adapter Haas Series: TR160 & HRT160 6.300″ Diameter, 1.500″ Height

$732.70

Add to quote
SKU: RWP-203 Categories: ,
Weight 5.0000 oz
Dimensions 7.0000 × 7.0000 × 3.0000 in
Brand Raptor Workholding
Connects to RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003-4X, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS
Diameter in. 6.300
Height in. 1.500
Machine Type Haas Series HRT160, Haas Series TR160

Description

  • Description
  • Key Dimensions
  • Included
  • Technical Files
  • Related Products

RWP-203

Adapter 7075-T6511 Aluminum

Enables compatible fixtures to be mounted on the Haas TR-160, TR160-2, TR200Y, HRT160 & HRC160 & HRC

Product Height: 1.500″

Product Diameter: 6.300″

Slotted Bolt Circle Diameters: 5.400-5.512″ for (6) 3/8-16 SHCS

Boss/Hole: 1.5000″ Diameter x .313″ Boss

Mounts: All fixtures with a Raptor Interface

Included Items: (6) 3/8-16 x 1.00 long SHCS, (6) 41406T Te-co Tnuts

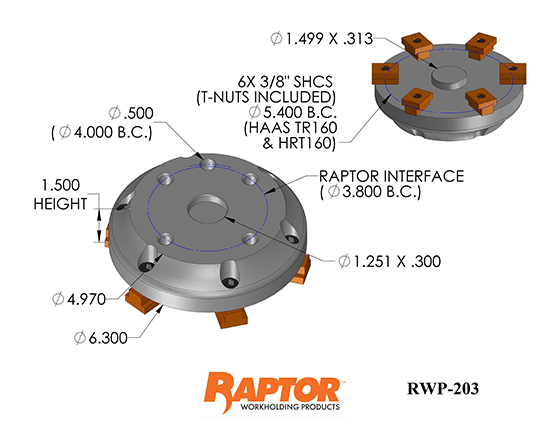

See Key Dimension Drawing for more details.

Raptor technical files are free for use of our valued customers. By creating an account or using these files, you agree to the Solid Model License and Privacy Policy.
